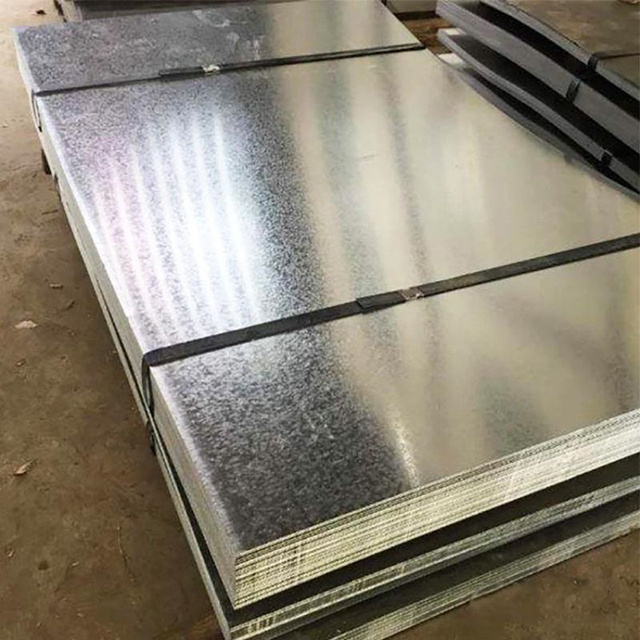

Galvanized sheet
Classification :
PRODUCT DETAILS
Product introduction
Galvanized sheet is a type of steel plate with a surface coated with a layer of zinc. Galvanization is a commonly used economical and effective rust prevention method, and about 50% of the world's zinc production is used in this process. The application of galvanized sheet is very extensive, such as preventing corrosion on the surface of the steel plate and extending its service life; Apply a layer of metallic zinc on the surface of the steel plate to produce galvanized steel plates, etc.
Galvanized sheet is widely used in fields such as construction, household appliances, automobiles, transportation, electricity, and communication. In the field of construction, galvanized sheet can be used to manufacture roofs, walls, doors and windows, etc; In the field of household appliances, it can be used to manufacture casings and components for products such as washing machines and refrigerators; In the field of automobiles, it can be used to manufacture car bodies, carriages, components, etc; In the field of transportation, it can be used to manufacture guardrails, signs, etc; In the fields of power and communication, it can be used to manufacture facilities such as brackets and towers.
|
Product name |
Galvanized sheet |
||
|
Thickness |
0.1mm - 5.0mm |
||
|
Width |
12.7mm - 2000mm |
||
|
Coil inner |
508mm / 610mm |
||
|
Surface |
Large zinc flower, small zinc flower, no zinc flower |
||
|
Surface Treatment |
Chromated, non-chromated, oiled, non-oiled, skin pass |
||
|
Zinc layer |
30g - 275g |
||
|
Standard |
GB, GOST, ASTM, AISI, JIS, BS, DIN, EN |
||
|
Technology |
Electrogalvanizing, hot-dip galvanizing, tinning |
||
|
Material |
CGCC, CGCH, G550, DX51D, DX52D, DX53D, etc. All according to the customer's request. |
||
|
Application |
Villas, townhouse, apartments, tourist destination building, and roof conversion project |
||
|
Package |
Waterproof paper & plastic film & iron packing & bunding, or as customer's requirement |
||
| Minimum Order Quantity | 25Tons |
Chemical Composition
|
Standard |
Grade |
C |
Si |
Mn |
P |
S |
Ti |
|
Forcold Forming Chinese Standard |
DX51D+Z |
0.12 |
0.50 |
0.60 |
0.100 |
0.045 |
0.30 |
|
DX52D+Z |
0.12 |
0.50 |
0.60 |
0.100 |
0.045 |
0.30 |
|
|
DX53D+Z |
0.12 |
0.50 |
0.60 |
0.100 |
0.045 |
0.30 |
|
|
DX54D+Z |
0.12 |
0.50 |
0.60 |
0.100 |
0.045 |
0.30 |
|
|
DX56D+Z |
0.12 |
0.50 |
0.60 |
0.100 |
0.045 |
0.30 |
|
|
DX57D+Z |
0.12 |
0.50 |
0.60 |
0.100 |
0.045 |
0.30 |
|
|
Forcold Forming Japanese Standard |
SGCC |
0.15 |
0.50 |
0.80 |
0.050 |
0.030 |
0.025 |
|
SGCD1 |
0.12 |
0.50 |
0.60 |
0.040 |
0.030 |
0.025 |
|
|
SGCD3 |
0.08 |
0.50 |
0.45 |
0.030 |
0.030 |
0.025 |
|
|
SGCD4 |
0.06 |
0.50 |
0.45 |
0.030 |
0.030 |
0.025 |
|
|
For Structure Japanese Standard |
SGC340 |
0.25 |
0.50 |
1.70 |
0.200 |
0.035 |
0.025 |
|
SGC400 |
0.25 |
0.50 |
1.70 |
0.200 |
0.035 |
0.150 |
|
|
SGC490 |
0.30 |
0.50 |
2.00 |
0.200 |
0.035 |
0.025 |
|
|
SGC510 |
0.30 |
0.50 |
2.50 |
0.200 |
0.035 |
0.025 |
|
|
For Structure AISI Standard |
S220GD+Z |
0.20 |
0.60 |
0.70 |
0.100 |
0.045 |
0.025 |
|
S250GD+Z |
0.20 |
0.60 |
0.70 |
0.100 |
0.045 |
0.025 |
|
|
S280GD+Z |
0.20 |
0.60 |
0.70 |
0.100 |
0.045 |
0.025 |
|
|
S320GD+Z |
0.20 |
0.60 |
0.70 |
0.100 |
0.045 |
0.025 |
|
|
S350GD+Z |
0.20 |
0.60 |
0.70 |
0.100 |
0.045 |
0.150 |
|
|
S550GD+Z |
0.20 |
0.60 |
0.70 |
0.100 |
0.045 |
0.150 |
Mechanical Properties
|
Grade |
Yield Strength MPa≥ |
Tensile Strength MPa≥ |
Elongation A%≥ |
|
DX51D Z/ZM/AZ/AM |
240-380 |
270-500 |
22 |
|
DX52D Z/ZM/AZ/AM |
140-300 |
270-420 |
26 |
|
DX53D Z/ZM/AZ/AM |
140-260 |
270-380 |
30 |
|
DX54D Z/ZM/AZ/AM |
120-220 |
260-350 |
36 |
|
S220GD Z/ZM/AM |
220 |
300 |
20 |
|
S250GD Z/ZM/AZ/AM |
250 |
330 |
19 |
|
S280GD Z/ZM/AM |
280 |
360 |
18 |
|
S300GD A/AM |
300 |
380 |
18 |
|
S320GD Z/ZM/AM |
320 |
390 |
17 |
|
S350GD Z/ZM/AZ/AM |
350 |
420 |
16 |
|
S450GD A/AM |
450 |
480 |
15 |
|
S550GD Z/ZM/AZ/AM |
550 |
550 |
- |

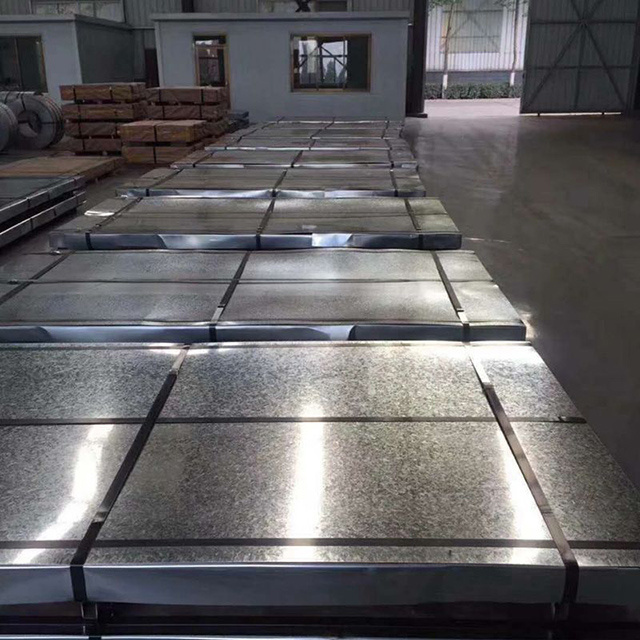

Warehouse storage
Our company is a quality benchmark enterprise in Shandong Province, a national contract-abiding and credit-abiding enterprise, and a national, industry and group standard unit for "Colored Steel Plate for Building Decoration". We have many customers all over the world, and our products are exported to Asia, the Middle East, America, Europe, Africa and other countries, enjoying a good reputation at home and abroad. Up to now, we have also established long-term, win-win partnerships with a number of large steel mills.

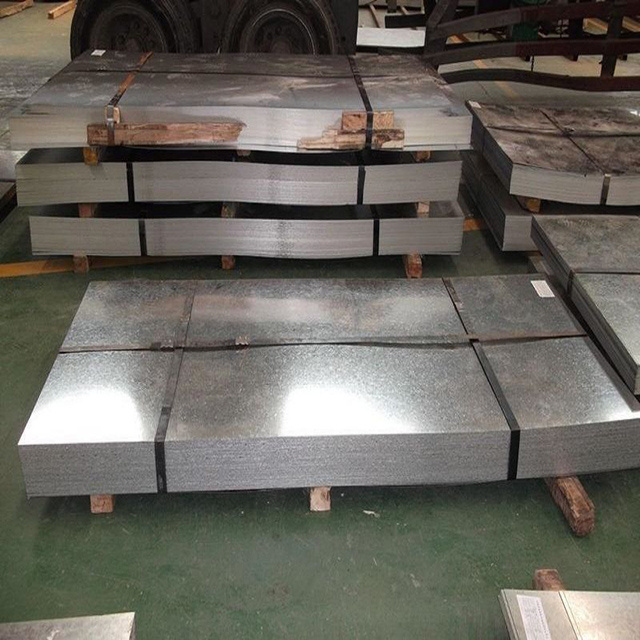

Packing and delivery
We are the first-level agent for Chinese state-owned enterprises Shanghai Baosteel and Taigang Iron and Steel Group. Our products can meet every unique requirement of our customers. We provide customized services. We can support customers with quality inspections if needed. We can provide competitive prices, good quality control, purchasing suggestions. Welcome to inquire and order!
CERTIFICATE OF HONOR
OUR SERVICE
1 : Prime quality and reasonable price.
2 : Wide excellent experiences with after-sale service.
3 : Every process will be checked by responsible QC which insures every product's quality.
4 : Professional packing teams which keep every packing safely.
5 : Trial order can be done in one week.
6 : Samples can be provided as your requirements
FAQ
Q2:Does the product have quality inspection before loading?
A:Of course, all our products have undergone strict quality inspection before packing.
Q3:Can you provide the samples free?
Q4:What about product prices information?
A:Prices various according to periodic price changes of raw materials.
Q6:What is your terms of payment ?
